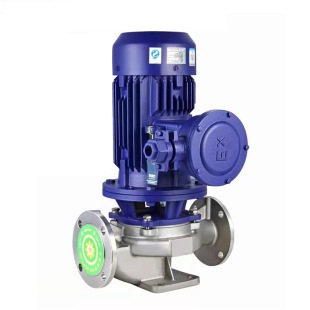

Product Introduction The Series is a specialized vertical inline pump engineered for the safe transfer of flammable and combustible liquids such as oil, diesel, gasoline, and solvents. It combines the significant space-saving advantages of an inline configuration with a certified explosion-proof motor, making it the ideal choice for applications in hazardous locations. The pump provides a reliable, high-performance solution for fuel depots, chemical plants, and refineries where both safety and a compact footprint are top priorities.
Design Philosophy & Construction The pump is engineered from the ground up for safety in hazardous environments.
- Explosion-Proof Motor: The core safety feature of the pump is its high-grade, Ex-rated motor. This motor is constructed to contain any potential internal spark or electrical fault, preventing it from igniting flammable vapors in the surrounding atmosphere. This allows the pump to be safely installed and operated in classified hazardous zones.
- Space-Saving Inline Design: The pump maintains the efficient vertical inline layout, allowing it to be installed directly into a straight run of pipe. This minimizes the installation footprint, a critical advantage in crowded processing areas, tank farms, and ship engine rooms.
- Oil & Fuel Compatible Materials: All pump components are selected for their compatibility with hydrocarbons. The pump is fitted with a robust mechanical seal with Viton® (FKM) elastomers that resist swelling and degradation from fuels and solvents. For added safety, the impeller is often made from a spark-resistant material like bronze.
Key Features & Benefits
- Certified for Hazardous Locations: The explosion-proof motor is the key feature, ensuring the pump can be operated safely in environments where flammable vapors are present.
- Saves Valuable Floor Space: The vertical inline design offers a minimal footprint, making it easy to integrate into existing pipelines or compact new installations.
- Reliable Fuel & Solvent Handling: The robust construction and oil-compatible materials provide a long, dependable service life when pumping a wide range of petroleum products.
- Simplified Installation: The pump fits directly into the pipeline, which eliminates the cost and complexity of building a foundation and aligning a separate motor and coupling.
- Enhanced Safety: The use of spark-resistant impeller materials provides an additional layer of protection against mechanical sparks.
Common Applications The Series is specifically designed for pumping flammable liquids in classified areas:
Marine Fuel Systems: Transferring fuel between tanks aboard vessels.
Fuel Depots and Tank Farms: Transferring gasoline, diesel, kerosene, and jet fuel between storage tanks, pipelines, and loading racks.
Petrochemical and Chemical Plants: Safely pumping flammable solvents, alcohols, and other volatile organic compounds.
Offshore Oil & Gas Platforms: Used for various fuel and chemical transfer duties in hazardous zones.
Aviation Refueling Systems: Circulating and transferring aviation fuels.
Paint, Ink, and Varnish Manufacturing: Handling solvent-based products and intermediates.
