Product Introduction

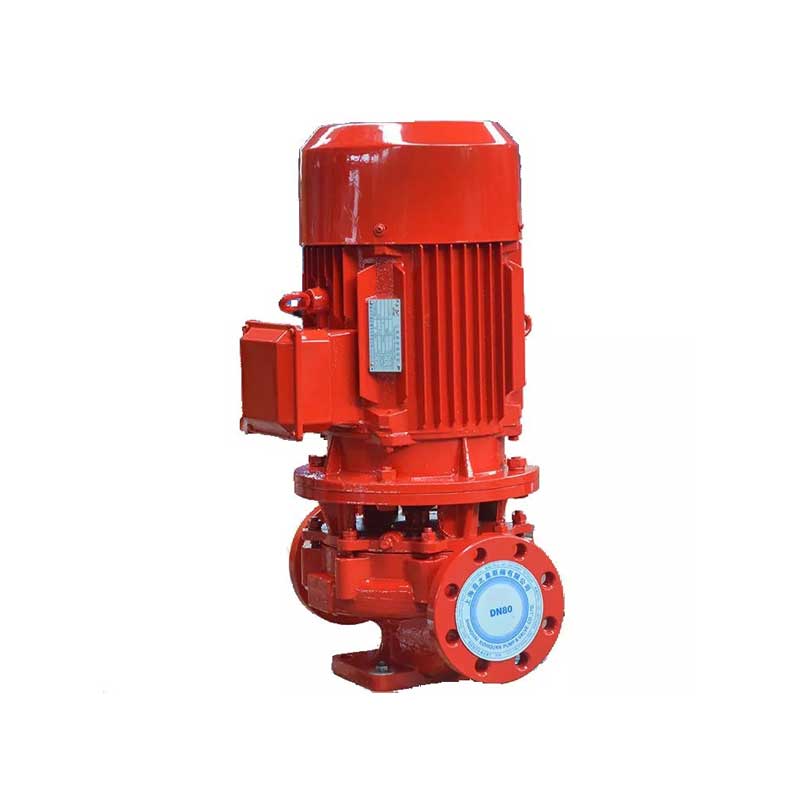

The Series is a Vertical In-line Fire Pump, a modern, compact, and highly efficient unit designed for fire protection systems in space-conscious installations. This pump is engineered and manufactured in strict accordance with NFPA 20 standards and is UL Listed and FM Approved for fire service. Its primary purpose is to reliably boost water pressure for automatic sprinkler and standpipe systems. The innovative in-line design allows the pump to be installed directly into a pipeline like a valve, dramatically reducing the required floor space compared to traditional fire pump designs.
Design Philosophy & Construction
The pump is engineered for maximum reliability, simplified installation, and minimal footprint, all while adhering to the stringent requirements of fire safety codes.
- Vertical In-line Configuration: The defining feature of this pump is its “in-line” design. The suction and discharge flanges are on the same centerline, allowing the pump to be mounted as an integral part of a straight run of pipe. This eliminates the need for the complex foundations, inertia bases, and intricate piping elbows required by horizontal pumps, saving an immense amount of pump room space.
- Close-Coupled, Unitized Design: The pump is “close-coupled,” meaning the impeller is mounted directly onto the extended shaft of a specially designed electric motor. This creates a single, compact, and perfectly aligned unit. This design eliminates the separate pump shaft, bearings, and flexible coupling of traditional pumps, which in turn eliminates shaft alignment issues and reduces the number of potential failure points.
- NFPA 20 Compliant Components:
- Listed Pump End: The pump’s wetted components, including the rugged cast iron casing and bronze-fitted impeller, are built and tested to meet the high-pressure and durability requirements of UL and FM for fire service.
- Listed Electric Motor: The pump is driven by a UL/FM listed electric motor specifically designed for the demands of fire pump duty. These motors are built for high-starting torque and ultimate reliability.
- System Integration: The pump is designed to be paired with a UL/FM listed fire pump controller, which provides the automatic starting and system monitoring capabilities mandated by NFPA 20.
Key Features & Benefits
- NFPA 20 Compliant & UL/FM Listed: Guarantees that the pump meets the highest global standards for life-safety equipment, ensuring it will perform reliably in a fire and satisfy all code and insurance requirements.
- Extreme Space-Saving Design: Its greatest advantage. The vertical in-line configuration can reduce the pump room footprint by 50% or more, freeing up valuable building space for other uses. This is a critical benefit in modern, high-density construction.
- Simplified and Lower-Cost Installation: The elimination of complex foundations and piping significantly reduces installation time, labor, and material costs compared to traditional horizontal pump sets.
- Quiet and Low-Vibration Operation: The single-shaft, close-coupled design is inherently balanced and aligned, resulting in exceptionally smooth and quiet performance.
- High Reliability and Durability: The streamlined design with fewer components (no separate coupling or pump bearings) results in a highly reliable unit with a long service life.
Common Applications
The pump is the ideal fire pump solution for any building or facility where floor space is at a premium.
- High-Rise Buildings: Perfectly suited for the compact mechanical rooms of office towers, hotels, hospitals, and residential condominiums.
- Retrofit Installations: The preferred choice when adding a fire pump to an existing building, as it can often be installed in tight spaces within existing pipe runs.
- Space-Constrained Facilities: Used in data centers, light industrial plants, and commercial buildings where maximizing lettable or operational floor space is a key design goal.
- As a Main Fire Pump: Serves as the primary pressure-boosting pump for automatic sprinkler and standpipe systems in any building that requires a listed fire pump but has limited space for a traditional horizontal model.
